357 Precision Potentiometer, 10K Waterproof, Long Service Life
357 series single coil conductive plastic potentiometer, plastic shell, threaded part made of nickel plated copper, welding terminal 1/4 "stainless steel non-magnetic shaft index insulation voltage: 1000 Vrms temperature coefficient: ± 600 ppm/° C output smoothness: 0.1% * large mechanical rotation angle: 360 ° continuous electrical rotation angle: 340 ° ± 3 ° mechanical life: 10000000 times, handle shape is circular and half two types are mainly supplied in industries such as instruments, precision mechanical equipment, welding equipment, audio equipment, automation equipment, communication, medical facilities, frequency converters, game consoles, UPS power supplies, etc
Specification parameters
357 product resistance spot specifications: B102 (1K), B202 (2K), B502 (5K), B103 (10K), and above specifications are available year-round in stock
Shaft diameter: 6.35mm
Standard shaft length 24MM
Outer diameter: 22MM
Fair error in resistance value: ± 10%
360 degree rotation,
Mechanical angle: 330
Temperature range: -10 ° C to 85 ° C
Rotating lifespan: 1000000 revolutions
Packaging: 20PCS/1 small box
Electrical Characteristics
1. Overall resistance range:500Ω--1MΩ
2. Resistor tolerance:±10%
3. rated power : B Taper 0.5W, The others 0.25W.
4. Impedance change characteristics:
| Impedance change characteristics | Test point
position(mm) | Output voltage between terminals 1-2
input voltage between terminals 1-3
V1-2/V1-3(%) | Output voltage between terminals 1-2
input voltage between terminals 1-3
V1-2/V1-3(%) |
| A | 180° | 10-30% |
|
| B | 150° | 40-60% |
|
| C | *180° |
| 10-30% |
| D | 150° | 2-15% |
|
| 90±5° | 5-15% |
|
| W | 150° | 40-60% |
|
| 210±5° | 85-95% |
|
*With respect to terminal 3
5. Residual resistance: Terminal 1-2/2-3 _10__Ω MAX.
6. Max. operation voltage: linear taper B AC 500V, other tapers AC 250V.
7. Slider noise ( Refer to JIS ): 47mV MAX.
8. Insulation resistance: 100MΩ MIN. at D.C 500 volts.
9. Withstanding voltage ( Terminal~case ): 1000V/2000V AC ( one minute ).
10. IP Rating: IP65
11.TCR :±500ppm/℃ ±100ppm/℃ ±50ppm/℃
12. Independent Liearity :Lin±3%
mechanical characteristics
Overall rotational angle: 360°
Effective Electrical Travel : 340°±10°
Operation torque: ≤150gf.cm ±50gf.cm( rotational speed 60°/1 sec ).
Durability
Rotational life: More than 1000,000 cycles.
face quality
According to the process and technical requirements specified in the product manual, product assembly drawing, and parts drawing.
Note
1. The items except above mentioned items shall meet or exceed JIS C 6443.
2. Operating temperature:-40℃~+125℃.
3. Storage temperature:-30℃~+70℃.
Product size
application area

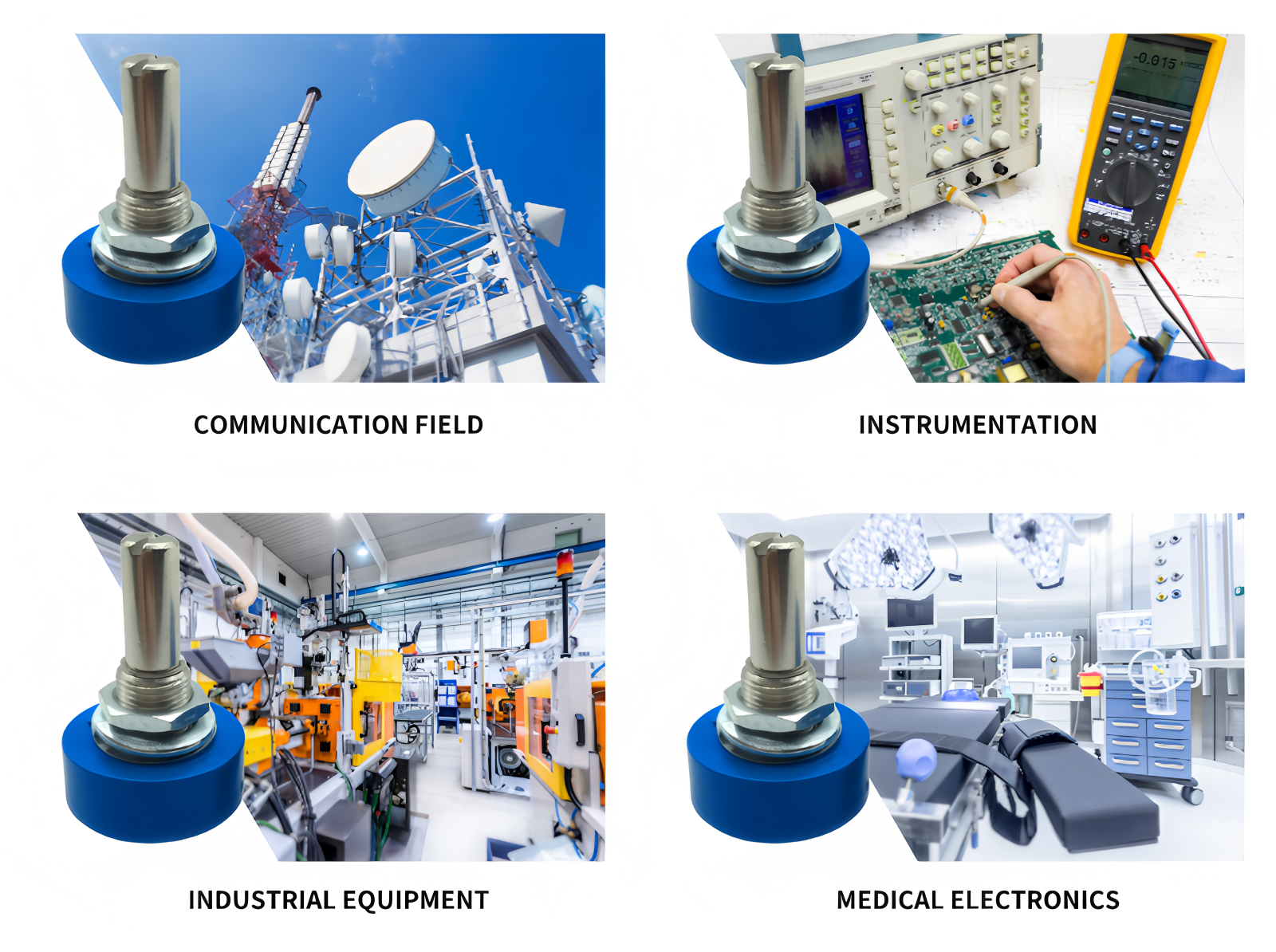

357 precision single-turn conductive plastic 360-degree unlimited rotation potentiometer is mainly used in instrumentation, precision machinery equipment, welding equipment, audio and other industry equipment, automation equipment, communications, medical facilities, frequency converters, game consoles, UPS power supplies, etc.
VR APPLICATION INSTRUCTIONS
Use of chemicals:Synthetic ressuns such as polycarbonate are used in the potentiometer. Care must, therefore, be exercised not expose the pesistor to thick atmosphere of ammonia, amins, alkali solution, aromatic hydocarbon,ketons, esters, halogenous hydrocarbons, etc.Use of flux:When soldering avoid using water-soluble flux. Otherwise, it might cause an adverse effect on moldingmaterial and metal.Soldering:Saldering operation must be completed in a time as sonn as possible suggested maxinum soldering-iron tiptemperature and allowable time is at 270 for 3 seconds. Avoid wiring and soldering that causes solder to flow out to the top of PC board as shown. A contact failure may occur in the terminal section.Dew condensation: Avoid using the potentiometer where dew or water drops might occur on the surface of the resistor,etc;insulation deterioration or shorting may occur.Prevention of ground noise:Single-unit potentiometers are generally constructed to be resistant to ground noise, butmulti-ganged types, shaft-moving(back and forth)types and car-audio-use types do not have such a feature. For use with high-gain sets, please consult us.Operation at low temperature:To assure smooth rotation of a potentiometer at extremely low temperature, which might be encountered in a car radio or car stereo, special low-temperature grease may be applied to moving parts in the potentiometer upon request. The rotational torque of a low-temperature potentiometer is given in the table below.
Rotatable
| Temperature | Rotational torgue |
| -20℃ | 80mN.m max |
| -30℃ | Rotatable |
7,Chassis mounting:Avoid using the screw longer than a specified one. Otherwise, the amont of travel may be reduced
or the potentiometer may be damaged if the lever is located at the end.feeling will be obtained.
