High Voltage 5.500 Series Glass Tube Fuse 500V Time - Lag Ceramic Fuse For Power Supply

Model Number : 5.500

Certification : UL,cUL

Place of Origin : Dongguan,China

MOQ : 1000pcs

Price : Ask for price

Payment Terms : T/T, Western Union

Supply Ability : 5,000,000pcs per week

Delivery Time : 10 days

Packaging Details : Bulk

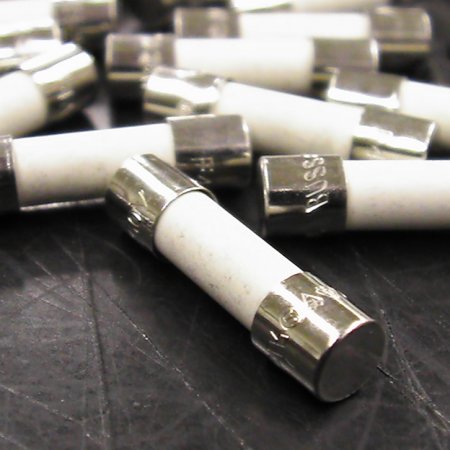

Name : Ceramic Tube Fuse

Body size : 5x20mm

Standards : In accordance with UL 248 -1 / -14.

Current range : 100mA~30A

Voltage ratings : 500V

Cap material : Nickel Plated Brass

Body material : Ceramic Tube

Explosion-proof sand : Quartz sand

Fuse element : Alloy

Lead wire : Tin Plated Copper

Contact Now

High Voltage 5.500 Series 500V Time-Lag Ceramic Tube 200mA to 30A Fuse For Power Supply

PDF Datasheet download link : High Voltage 5.500 Series 500V Time-Lag Ceramic Tu...

Application

Suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply and Adapter applications, etc.

High Voltage 5.500 Series Glass Tube Fuse 500V Time - Lag Ceramic Fuse For Power Supply

Agency Approvals

Voltage ratings	Agency	Ampere range	File number
500V	UL	200mA ~ 30A	E340427(JDYX)
	C-UL	200mA ~ 30A	E340427(JDYX7)
	PSE	200mA ~ 10A	Pending
	KTL	200mA ~ 30A	Pending

Dimensions and Structure

High Voltage 5.500 Series Glass Tube Fuse 500V Time - Lag Ceramic Fuse For Power Supply

Material List

NO.	Name	Material
1	Cap	Nickel Plated Brass
2	Body	Ceramic tube
3	Fuse element	Alloy
4	Explosion-proof sand	Quartz sand
5	Lead wire	Tin Plated Copper

Specification

Part Number	Ampere Rating	Voltage Rating	Breaking Capacity	I2TMelting Integral(A2.S)
Part Number	Ampere Rating	Voltage Rating	Breaking Capacity	I2TMelting Integral(A2.S)
5.5000100A	100mA	500V	10000A@125 V AC (200mA~10A); 35A@250V AC (200mA~1A); 100A@250V AC (1.25A~3.5A); 200A@250V AC (4A~30A). 1KA@500V AC (4A~30A).	0.002
5. 5000125A	125mA	500V		0.003
5. 5000160A	160mA	500V		0.005
5. 5000200A	200mA	500V		0.01
5. 5000250A	250mA	500V		0.02
5. 5000300A	300mA	500V		0.04
5. 5000315A	315mA	500V		0.045
5. 5000350A	350mA	500V		0.055
5. 5000400A	400mA	500V		0.07
5. 5000500A	500mA	500V		0.1
5. 5000630A	630mA	500V		0.2
5. 5000750A	750mA	500V		0.35
5. 5000800A	800mA	500V		0.45
5. 5001100A	1A	500V		0.9
5. 5001125A	1.25A	500V		1.3
5. 5001150A	1.5A	500V		1.6
5. 5001160A	1.6A	500V		2.5
5. 5001200A	2A	500V		5.8
5. 5001250A	2.5A	500V		7.6
5. 5001300A	3A	500V		8.1
5. 5001315A	3.15A	500V		11
5. 5001350A	3.5A	500V		19
5. 5001400A	4A	500V		28
5. 5001500A	5A	500V		40
5. 5001600A	6A	500V		50
5. 5001630A	6.3A	500V		64
5. 5001700A	7A	500V		107
5. 5001800A	8A	500V		133
5. 5002100A	10A	500V		242
5. 5002120A	12A	500V		245
5. 5002150A	15A	500V		368
5. 5002160A	16A	500V		378
5. 5002200A	20A	500V		442

Packaging

1.The following items indicated on the label:
Catalog number, ratings (voltage, current), interrupting type and safety mark.
The packing material conforms to ROHS/REACH/HF environmental protection request. And
the packing materials will not have the chemical reaction with the components.
2 Packing Quantity
Bulk 250 pcs in per poly bag;
10 poly bags in per inner box;
4 inner boxes in per outer carton

A. inner box:L240±2 * W170±2 * H110±2

B. Outer carton:L390±5 * W240±5 * H250±5
